- General Information
- Manufacturer
- Corsair
- Manufacturer Website Address
- http://www.corsair.com/us/
- Brand Name
- Corsair
- Product Series
- SF
- Product Type
- Power Supply

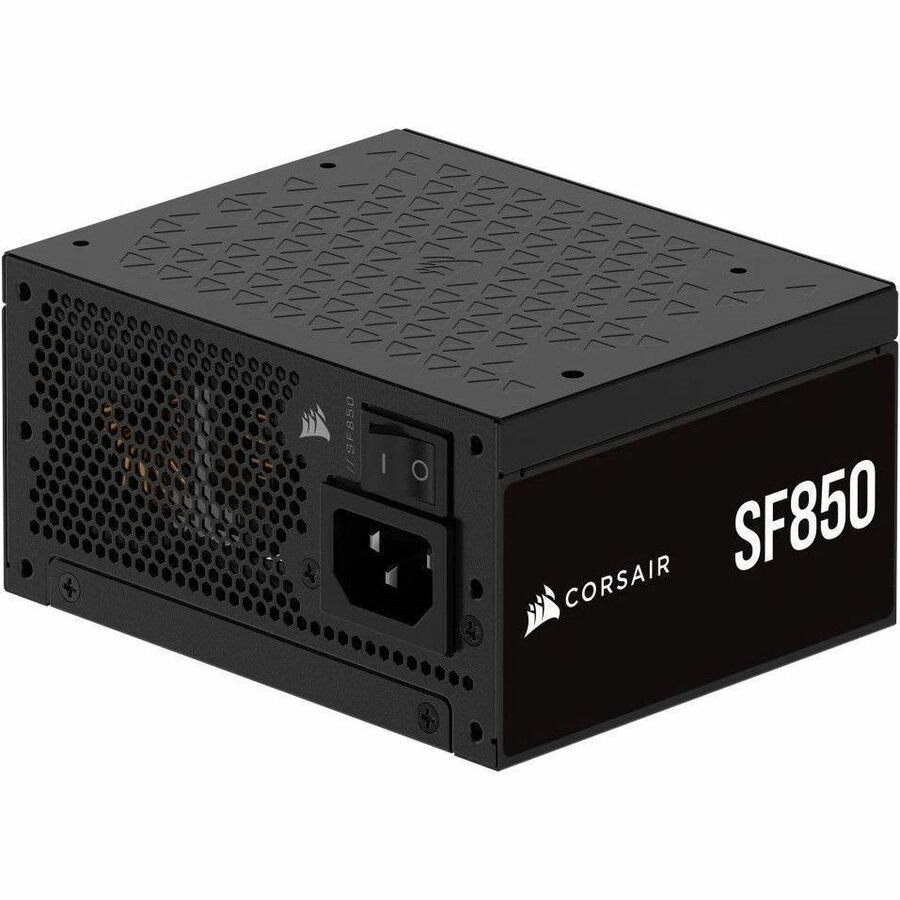

SMALL AND MIGHTY
Don't let the size fool you - this SFX power supply packs 80 PLUS Platinum-rated power, perfect for the most power-dense small form-factor PCs.
50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power for your SFF PC, even under high-stress conditions.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF Series PSUs are formally certified for ATX 3.1 compliance.
PCIe 5.1 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
QUIET OPERATION WITH ZERO RPM MODE
A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.
FULLY MODULAR TYPE 5 MICRO-FIT CONNECTORS
Connect only what you need, with flexible cabling to take up less space for tidy cable management in small cases.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
- Warranty
- Limited Warranty
- 7 Year
- Technical Information
- Specification Compliance
- ATX12V v3.1
- Number of Fans
- 1
- Fan Bearing Type
- Fluid Dynamic Bearing
- Fan Diameter
- 92 mm
- Modular
- Yes
- Modular Type
- Fully Modular
- NVIDIA SLI Supported
- Yes
- Features
- Low Noise
- Reliability
- MTBF
- 100000 Hour
- Power Description
- Input Voltage
- 120 V
- 230 V
- Output Voltage
- 3.3 V
- 5 V
- 12 V
- 5 V SB
- Output Voltage Detail
- 3.3 V @ 20 A
- 5 V @ 20 A
- 12 V @ 70.8 A
- 5 V SB @ 3 A
- Output Current
- 20 A
- 70.80 A
- 3 A
- Output Power
- 850 W
- Input Frequency
- 47~63Hz
- Interfaces/Ports
- Number of SATA Power Connectors
- 8
- PCI Express Connector
- Yes
- PCI Express Version
- 5.1
- Number of (6+2 pin) PCI Express Power Connectors
- 3
- Number of (4+4 pin) CPU Power Connectors
- 2
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- SFX
- Internal
- Height
- 2.5"
- Width
- 4.9"
- Depth
- 3.9"
- Miscellaneous
- Package Contents
- SF RPS0175 850W Power Supply
- Power cord
- Mounting screws
- Cable ties
- Energy Efficiency Certification
- 80 Plus Platinum
