Power Cord Connects Data Center Equipment to Reliable AC Power

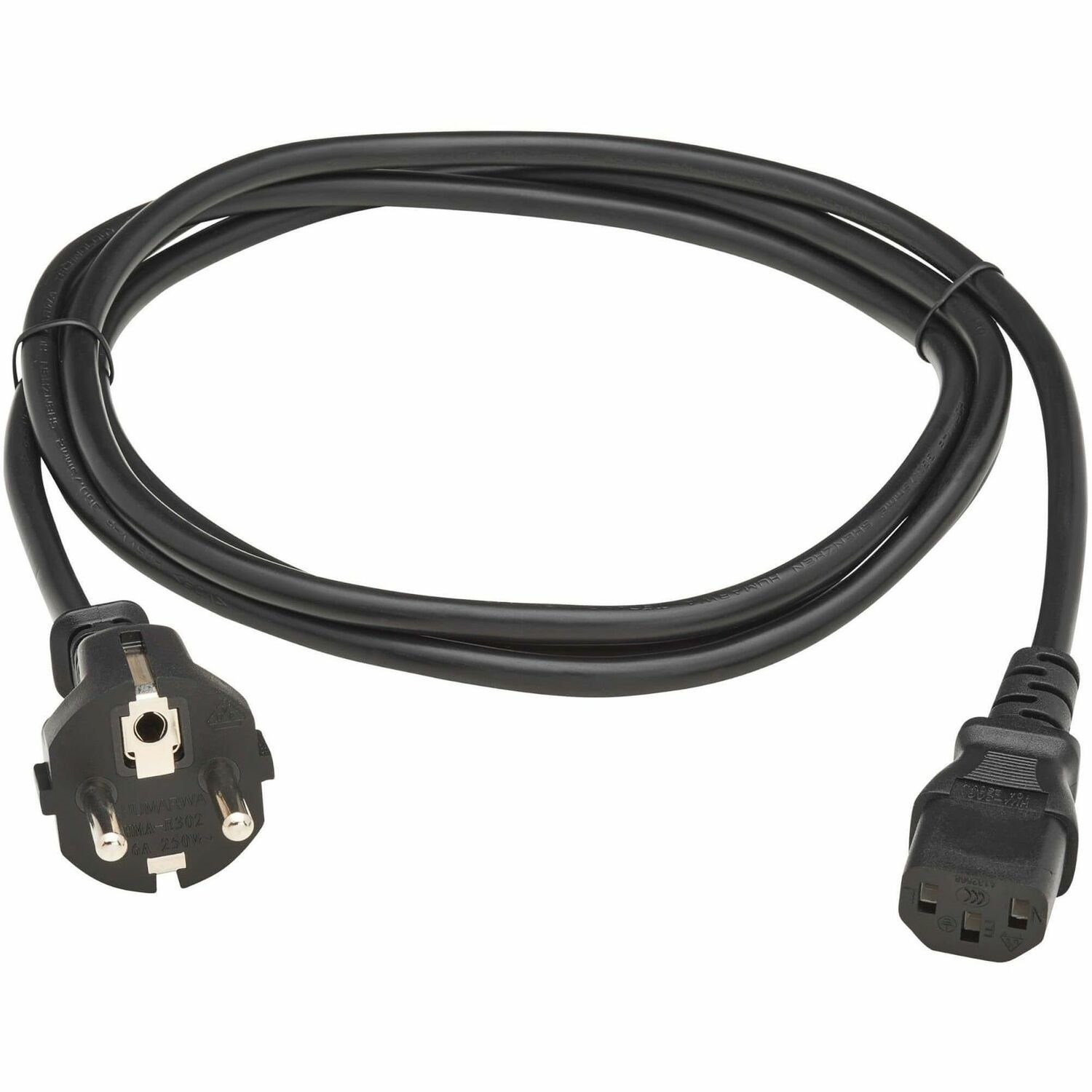

This VDE-compliant power cable connects a computer, server or drive with a C14 plug to a PDU, UPS or surge protector with Schuko outlets. Or you can extend an existing power connection up to two meters (6.6 feet). The P054-02M-EU features a CEE 7/7 Schuko end for connecting to an AC power source and an IEC-320-C13 end for connecting to a network device in a data center or other IT application.
H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.
- General Information
- Manufacturer
- Eaton Corporation
- Manufacturer Website Address
- http://www.eaton.com
- Brand Name
- Tripp Lite series
- Product Type
- Power Extension Cord
- Technical Information
- First End Connector Type
- Schuko CEE 7/7
- First End Connector Detail
- 1 x 2-pin Schuko CEE 7/7 Male
- Second End Connector Type
- IEC 60320 C13
- Second End Connector Detail
- 1 x 3-pin IEC 60320 C13 Female
- Device Supported
- UPS
- Surge Protector
- Network Device
- Computer
- Server
- Localization
- Europe
- Gauge
- 18
- Number of Conductors
- 3
- Power Description
- Voltage Rating
- 120 V AC
- 230 V AC
- Current Rating
- 10 A
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Jacket Material
- Polyvinyl Chloride (PVC)
- Height
- 9"
- Width
- 7"
- Depth
- 0.5"
- Cord Length
- 6.56 ft
- Weight (Approximate)
- 0.24 lb
- Environmental Conditions
- Minimum Operating Temperature
- 5°F (-15°C)
- Maximum Operating Temperature
- 158°F (70°C)
- Minimum Storage Temperature
- 5°F (-15°C)
- Maximum Storage Temperature
- 140°F (60°C)
- Miscellaneous
- Certifications & Standards
- CE
- UKCA
- VDE
- Country of Origin
- China
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
