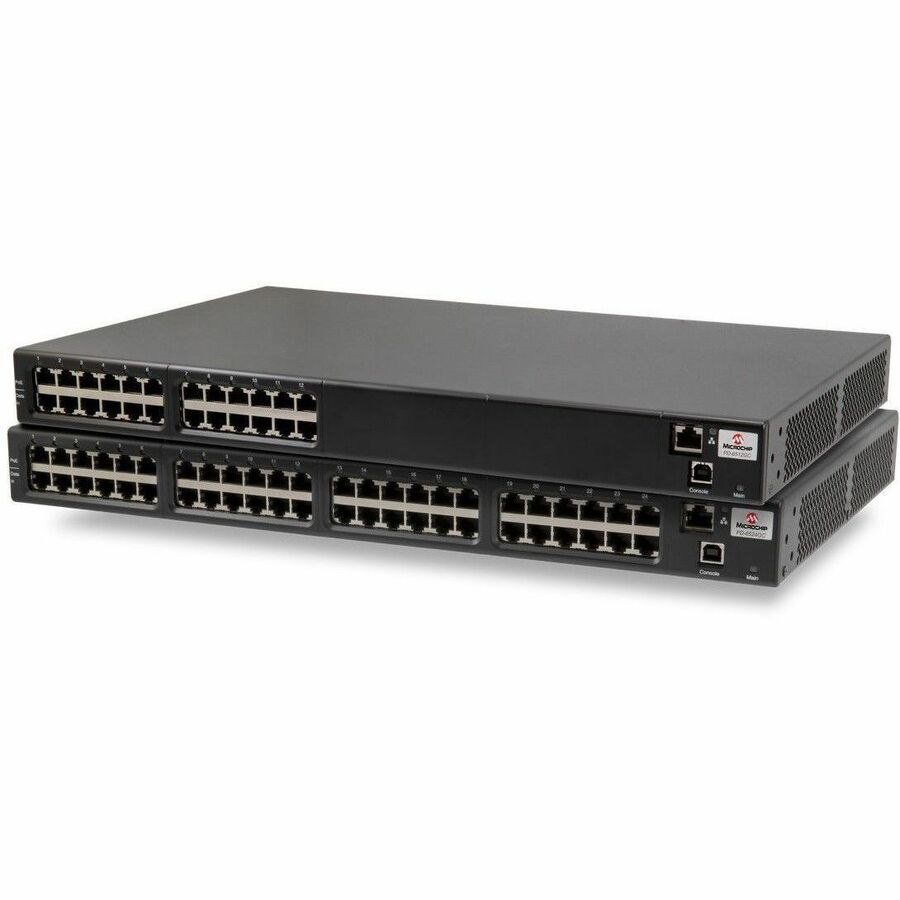

Microchip's twenty four ports PoE midspan provides up to 15.4 Watts of power over Ethernet and offers a IEEE 802.3af-compliant solution to IP telephones, wireless LAN access points, security network cameras and many other types of data terminals over standard Ethernet data cables, leaving network infrastructure completely unaltered. With the midspan's plug-and-play installation, it can be easily and cost-effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future-proof network.
- General Information
- Manufacturer
- Microchip Technology Inc.
- Manufacturer Website Address
- http://www.microchip.com
- Brand Name
- Microchip
- Product Series
- 6500G
- Product Type
- PoE Injector
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Minimum Output Voltage
- 52 V DC
- Minimum Input Current
- 2.75 A
- Maximum Input Current
- 5.50 A
- Maximum Output Power
- 15.40 W
- Interfaces/Ports
- Output Ports
- 12 x 10/100/1000Base-T
- Physical Characteristics
- Form Factor
- Rack Mountable
- Height
- 1.7"
- Width
- 10.7"
- Length
- 17.2"
- Weight (Approximate)
- 11.02 lb
- Miscellaneous
- Package Contents
- 24 Ports, 15.4W, IEEE 802.3af-Compliant Indoor PoE Midspan, Managed
- Power Cord
- Compatibility
- IP Telephones
- Wireless LAN Access Points
- Security Network Cameras
- Certifications & Standards
- CE
- IEEE 802.3af (PoE)
Safety Approvals:
- UL
- IEC
- EN 62368-1
- Electromagnetic Emission and Immunity:FCC Part 15, Class B
- EN 55032 Class B
- EN 55024
- VCCI
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
