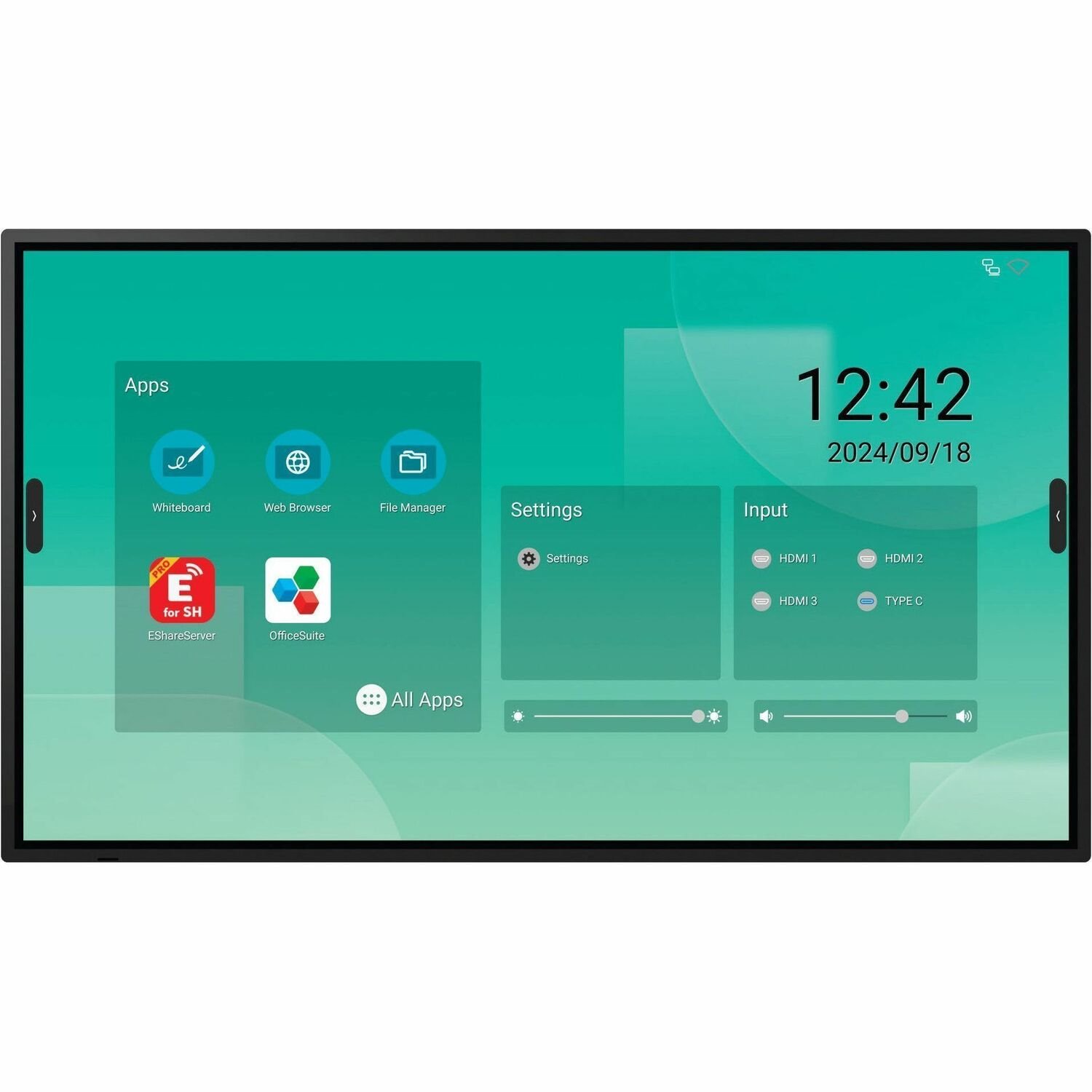

The PN-LM AQUOS BOARD® range of smart interactive displays combines genuine 4K Ultra-HD resolution and an intuitive "Pen-on-Paper" user experience. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The PN-LM AQUOS BOARD interactive displays also feature an integrated controller with whiteboard, overlay and wireless functionality to help enhance your productivity.
- 55" Class (54.6" diagonal) Screen Size
- Brilliant Ultra-HD (3,840 x 2,160) Direct Lit LCD Display
- 20-Point IR touch screen
- Arm® Cortex®A73x4 2.3Ghz+Arm® Cortex®A53x4 2.0Ghz (octo-core)
- 500 cd/m2 Brightness / 5,000:1 Contrast Ratio
- EnergyStar 8.0 Certified
- Built-in 10W per Channel Stereo Audio System
- 5-Year Limited Warranty
- General Information
- Manufacturer
- Sharp
- Manufacturer Website Address
- http://www.sharp-nec-displays.com/
- Brand Name
- Sharp NEC Display
- Product Line
- AQUOS BOARD
- Product Type
- Collaboration Display
- Warranty
- Limited Warranty
- 5 Year
- Display & Graphics
- Viewable Screen Size
- 55"
- Display Screen Type
- LCD
- Display Screen Technology
- TFT LCD
- Backlight Technology
- Direct LED
- Screen Mode
- 4K UHD
- Screen Resolution
- 3840 x 2160
- Scan Format
- 2160p
- Aspect Ratio
- 16:9
- Color Supported
- 1.07 Billion Colors
- Contrast Ratio
- 5,000:1
- Display Orientation
- Landscape
- Portrait
- Brightness
- 500 Nit
- HDCP Supported
- Yes
- Horizontal Viewing Angle
- 178°
- Vertical Viewing Angle
- 178°
- Standard Refresh Rate
- 60 Hz
- Touchscreen Information
- Touchscreen
- Yes
- Multi-touch Screen
- Yes
- Number of Touch Points
- 20
- Touchscreen Technology
- Infrared (IrDA)
- Processor & Chipset
- Processor Manufacturer
- ARM
- Processor Type
- Cortex A73 + A53
- Audio
- Speakers
- Yes
- Network & Communication
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Interfaces/Ports
- HDMI
- Yes
- Number of HDMI Inputs
- 3
- Number of HDMI Outputs
- 1
- Total Number of USB Ports
- 4
- USB
- Yes
- Number of Network (RJ-45) Ports
- 1
- Network (RJ-45)
- Yes
- Audio Line In
- Yes
- Audio Line Out
- Yes
- Serial
- Yes
- Power Description
- Power Consumption
- 230 W
- Standby Power Consumption
- 500 mW
- Typical Power Consumption
- 145 W
- Physical Characteristics
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 400 x 400
- Bezel Width (Bottom)
- 0.59"
- Bezel Width (Left)
- 0.59"
- Bezel Width (Right)
- 0.59"
- Bezel Width (Top)
- 0.59"
- Height with Stand
- 28.90"
- Depth with Stand
- 2.90"
- Weight (Approximate)
- 72.80 lb
- Miscellaneous
- Package Contents
- 55" Class AQUOS BOARD
- 1 x AC power cord
- 1 x Remote control unit
- 2 x Remote control unit battery (AAA size)
- 1 x Setup manual
- 1 x Blank sticker(cover SHARP logo)
- 3 x Cable clamp
- 1 x Camera mount
- 1 x Camera mount screw
- 1 x USB cable
- 2 x Touch pen
- Energy Star
- Yes
- Energy Efficiency Certification
- ENERGY STAR 8.0
